• Wheels, 17" (43.2 cm) machined aluminum (Upgradeable to (PYV) 18" (45.7 cm) forged polished aluminum wheels or (PYS) 20" (50.8 cm) forged polished aluminum wheels. Includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.)
• Tires, LT245/75R17E all-season, blackwall
• Pickup box, Fleetside
• Recovery hooks, front, Black
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered)
• Spare tire lock keyed cylinder lock that utilizes same key as ignition and door (Not included when (ZW9) pickup box delete or (VF7) rear bumper delete is ordered.)
• Bumper, front chrome includes chrome bumper end caps
• Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete.)
• Moldings, bodyside, body-colored (Moldings are deleted if any SEO paint is ordered.)
• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Mirrors, outside heated power-adjustable, Black, manual-folding (Upgradeable to (DPN) outside vertical camper mirrors.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass) (With Regular Cab Models, includes rear window. With Crew Cab Models or (C49) rear-window defogger, includes light-tinted rear window.)
• Wipers, front intermittent wet-arm with pulse washers
• Door handles, Black

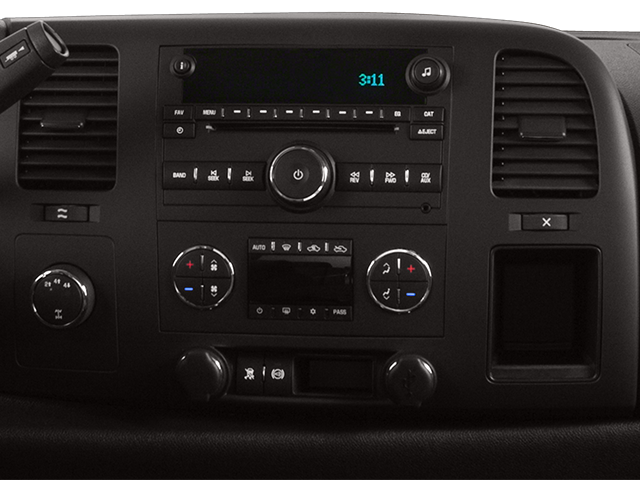

• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume and TheftLock
• SiriusXM Satellite Radio is standard on nearly all 2014 GM models. Enjoy a 3-month trial to the XM All Access package, with over 150 channels including commercial-free music, all your favorite sports, exclusive talk and entertainment. With All Access, listen to everything, everywhere, in your car and on your computer, smartphone or tablet. (Not available with (UE0) OnStar, delete. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at siriusxm.com. Other fees and taxes will apply. All fees and programming subject to change. IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use.)
• Audio system feature, speaker system (Includes 4 speakers on Regular Cab and 6 speakers on Crew Cab Models.)

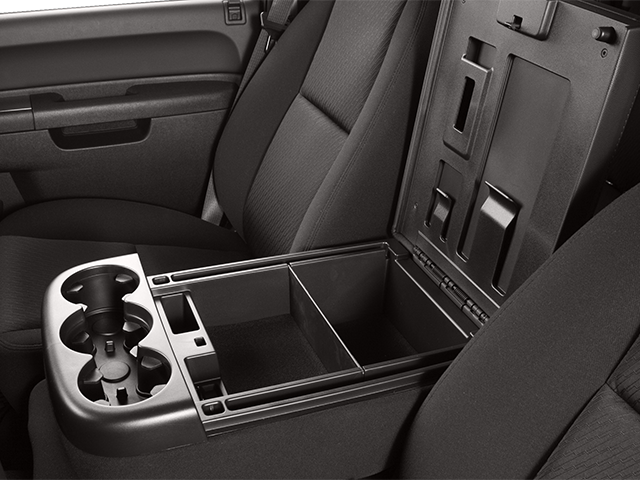

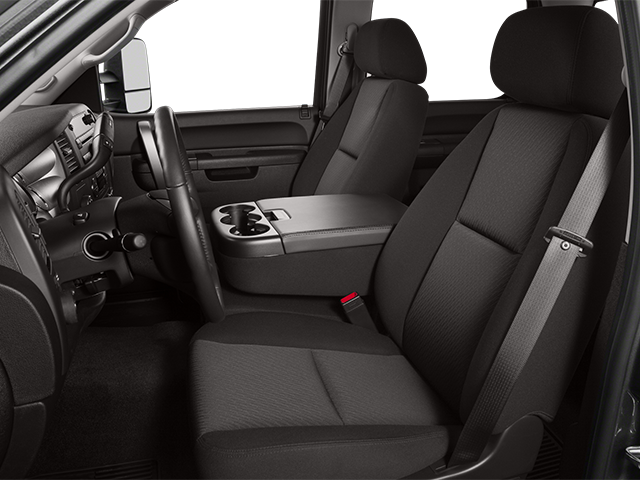

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining center fold-down armrest with storage, lockable storage compartment in seat cushion (includes auxiliary power outlet), adjustable outboard head restraints and storage pockets on Crew Cab models
• Seat trim, Premium Cloth
• Seat adjuster, manual lumbar control on the driver-side

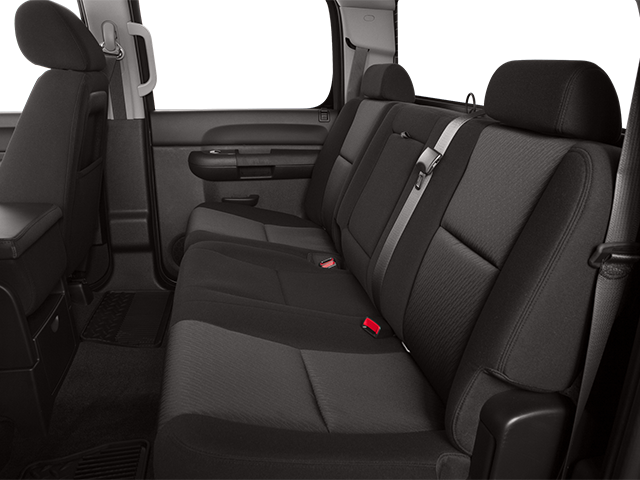

• Seat, rear 60/40 folding bench (folds up), 3-passenger, folding (includes child seat top tether anchor) (Requires Crew Cab Models.)
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Crew Cab models also include rear floor mats) (May be substituted with (BG9) Black rubberized vinyl floor covering.)

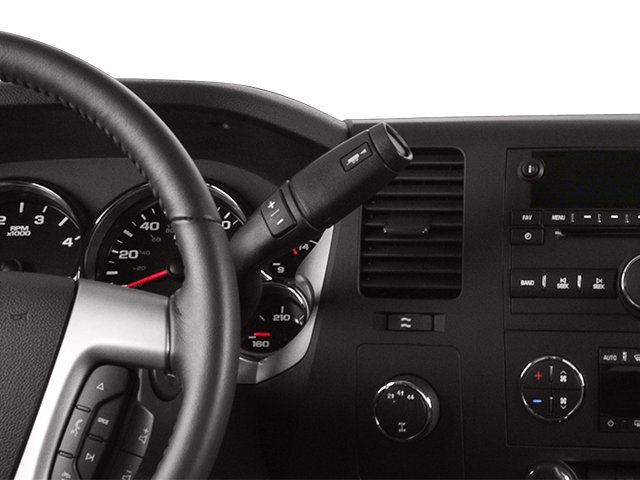

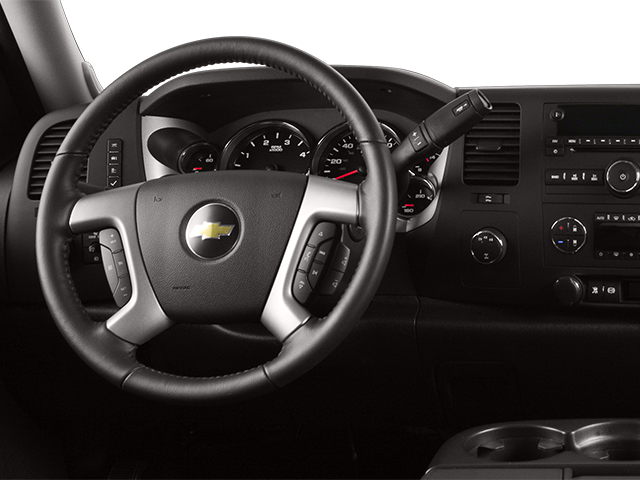

• Steering wheel, leather-wrapped with theft-deterrent locking feature
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, power with driver Express-Down
• Door locks, power includes Remote Keyless Entry
• Cruise control, electronic with set and resume speed, located on steering wheel
• Remote vehicle starter prep package includes Remote Keyless Entry with 2 transmitters, panic button and content theft alarm (To enable remote start capability, new key fobs and vehicle reprogramming are required. Please see dealer for details. Remote Keyless Entry does not lock/unlock tailgate.)
• Air conditioning, single-zone manual front climate control
• Cup holders, front (Also includes rear cupholders on Crew Cab models)
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger, sliding with clip and illuminated vanity mirror on driver and passenger-side, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Crew Cab models)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Door locks, rear child security (Crew Cab models only.)
• Tire Pressure Monitor System (does not apply to spare tire)

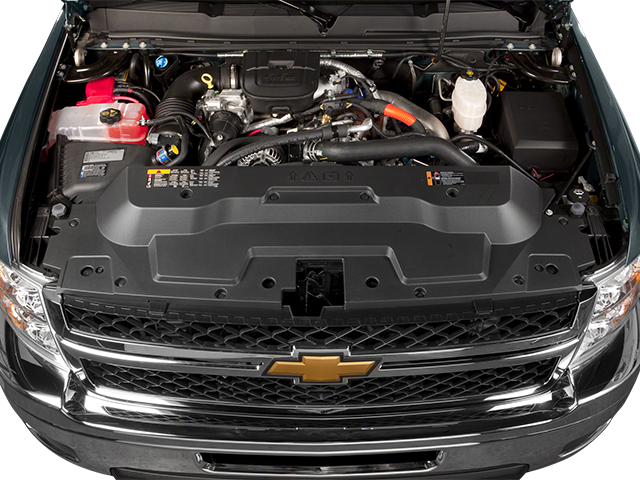

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm)

• AZ3
• DPN
• LML
• MW7
• PEB
• UUI
• UVC
• Z82-R

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3696
• Curb Weight - Rear (lbs): 2738
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 24500
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1950
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1410
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15800
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4175
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2350
• Maximum Trailering Capacity (lbs): 15800
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5200
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 5200
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Front Tire Size: LT245/75R17
• Rear Tire Size: LT245/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 50.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 240.20
• Width, Max w/o mirrors (in): 80.00
• Height, Overall (in): 78.10
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.90
• Cab to Axle (in): 41.60
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 37.90
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.80
• Ground Clearance, Rear (in): 8.20
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.80
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.50
• Cargo Box Width @ Wheelhousings (in): 50.60
• Cargo Box (Area) Height (in): 21.00
• Tailgate Width (in): 61.60
• Cargo Volume (ft³): 60.7
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.30
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 65.20
• Front Hip Room (in): 60.30
• Second Head Room (in): 40.60
• Second Leg Room (in): 39.00
• Second Shoulder Room (in): 65.20
• Second Hip Room (in): 65.50
• Summary
• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
